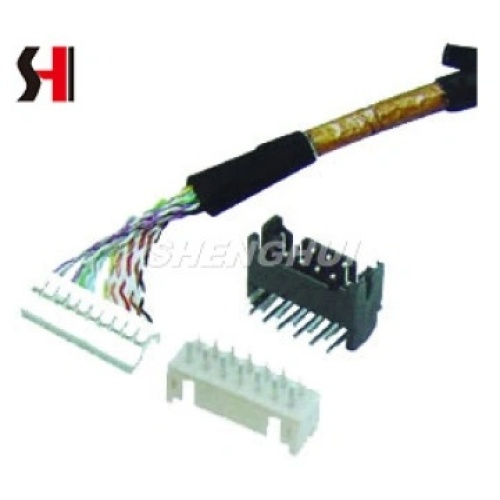

How Does a Wire Harness Work in Electrical Equipment?

Each wire in the harness has a specific function. Some wires carry current, some transmit signals, and others provide grounding. These wires are cut to the required length, stripped, crimped with terminals, and assembled with suitable connectors.

Connectors make the wire harness easy to install and replace. They help ensure accurate connection, reduce assembly time, and prevent loose wiring. In many applications, the connector design also improves safety and stability.

To protect the wires, manufacturers may use insulating tape, corrugated tubes, braided sleeves, heat shrink tubing, or PVC sleeves. These materials help prevent wear, short circuits, vibration damage, and environmental influence.

A wire harness also helps keep the internal layout of equipment clean and organized. This is especially important in vehicles, appliances, machinery, and compact electronic products where space is limited.

Before delivery, wire harnesses are usually tested for continuity, short circuits, terminal position, and appearance. These inspections help ensure every circuit is connected correctly.

A properly designed wire harness improves electrical performance, reduces installation errors, and supports stable operation in many types of equipment.
